Balancing Machines for Turbocharger Compressor Wheels Xondo 010, Xondo 100, Xondo 300, Xondo 500 (semi automatic) - Schenck in Philipines
Semi automatic balancing of turbocharger compressor wheels
Patented air bearing support for extreme measurement accuracy
Digital measured data processing and numerically controlled unbalance correction
Easy change over to other rotor types
Short cycle times
Most compact design
Easy movable
Titanium machining (option)
Sequence of operations
The work-piece is loaded into the measuring station.
Automatic measuring run, brake to zero rpm
Remove the rotor from the measuring station and load it into the correction station

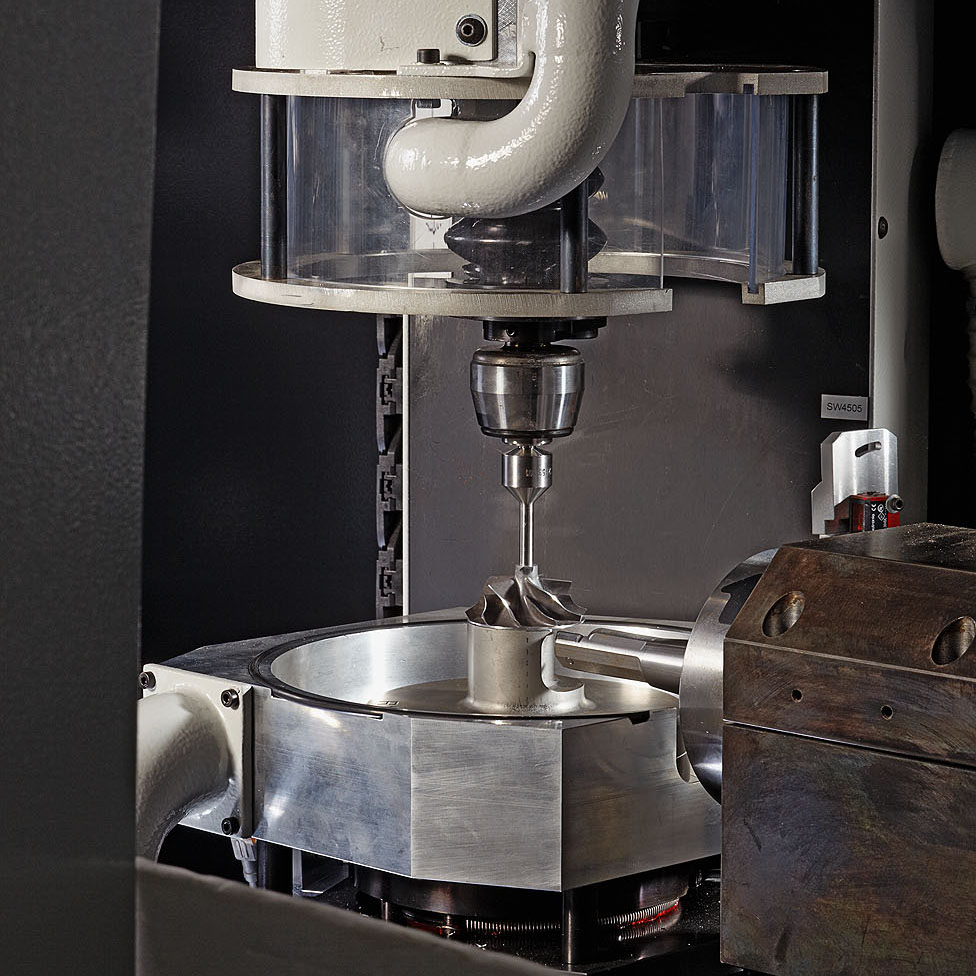

Clamp, index to the correction position for the 1st plane, advance the milling cutter to the milling position and control the milling cut. If the unbalance is large the cutter is additionally turned to increase the amount of material removed
Index and move the milling device to the correction position for 2nd plane, repeat the milling process and unclamp
Transfer the rotor to the measuring station and start the check run.
Design
Range of application
Measurement and correction of dynamic unbalance of machined
turbocharger compressor wheels, use of the machine in mid- to
large-volume production. Semi automatic unbalance measurement and
correction through polar milling in two planes and with up to two
correction steps.
Design

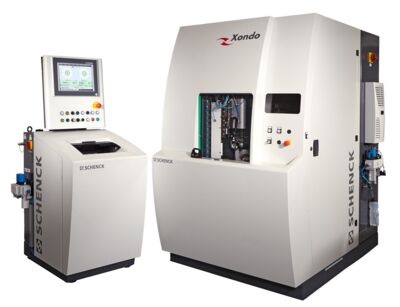

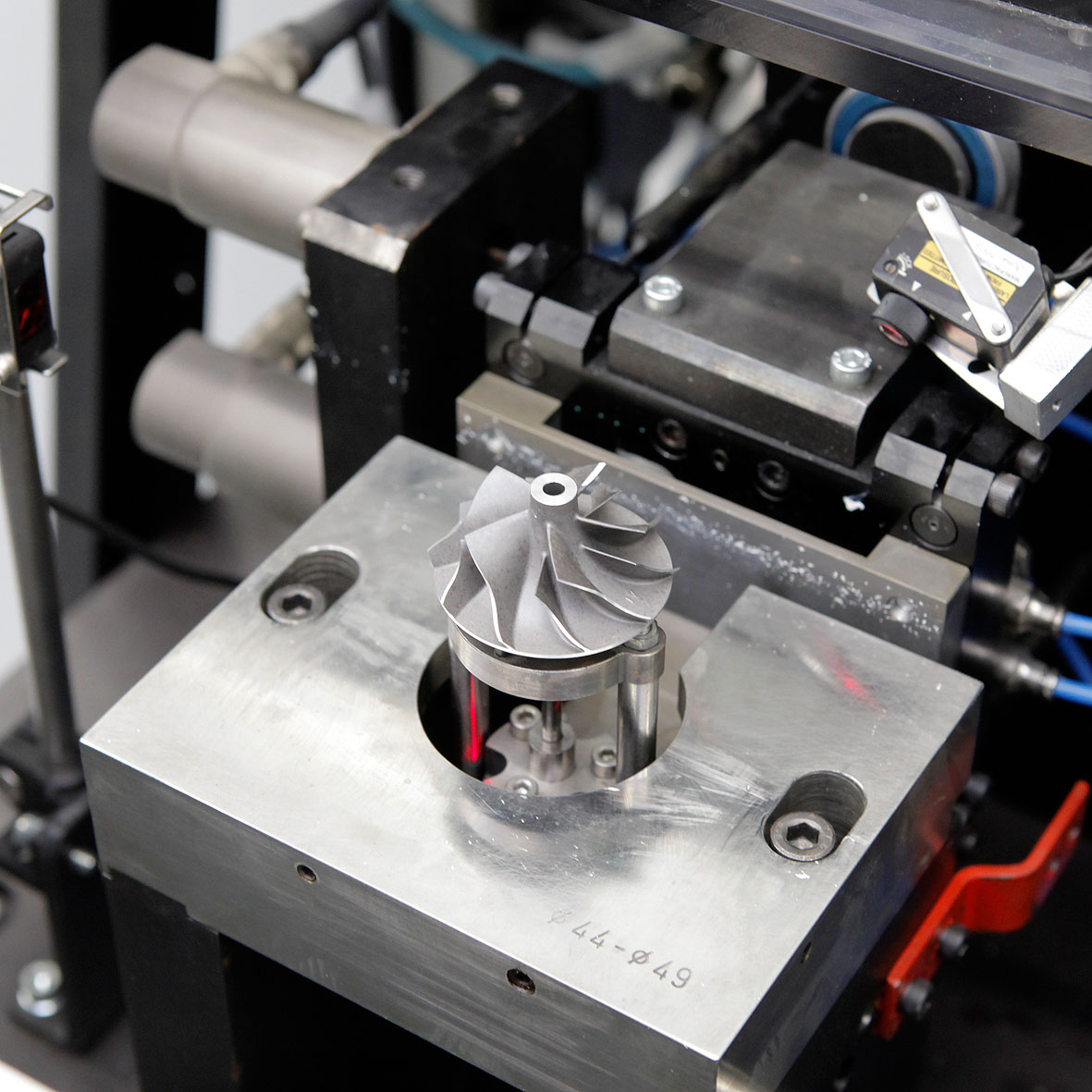

Two-station machine with measuring and correction station and semi automatic operating cycle. Vertical balancing unit on a vibration-optimized machine frame, type-dependent, exchangeable precision air-bearing support for the compressor wheel, driven by a special drive plate with air jets adapted to the rotor diameter.
Measured data processing by measuring unit CAB 950.
Correction station with NC-controlled milling unit for unbalance correction by polar milling at the nose and back face of the compressor rotor.
Technical data
Data at a glance
Xondo 010
Xondo 100
Xondo 300
Xondo 500
Measuring unit
CAB 950
CAB 950
CAB 950
CAB 950
Automatic unbalance measurement
•
•
•
•
Automatic unbalance correction 4)
•
•
•
•
Gantry loader
Turbine rotor
Compressor rotor
•
•
•
•
Rotor
Weight
[g]
3 - 50
10 - 150
60 - 400
100 - 1500
Diameter
[mm]
25 - 65
30 - 95
65 - 125
120 - 180
Machine
Measurement uncertainty 2)
[gmm]
0,002 - 0,02
0,003 - 0,03
0,015 - 0,1
0,05 - 0,4
Cycle time
[s]
45 - 60
45 - 60
45 - 70
45 - 80
Air pressure
[kPa]
450 - 600
450 - 600
450 - 600
450 - 600
Air consumption
[m3/h]
8
8
8
8
Options
Hydrostatic bearings for boreless compressor wheels
1) Adapted to the rotor
2) Acc. to DIN 1319, 95% probability, work-piece dependent
3) Data non-binding, dependent on the respective equipment
4) Polar milling of the hub and rear side
o.r. on request
